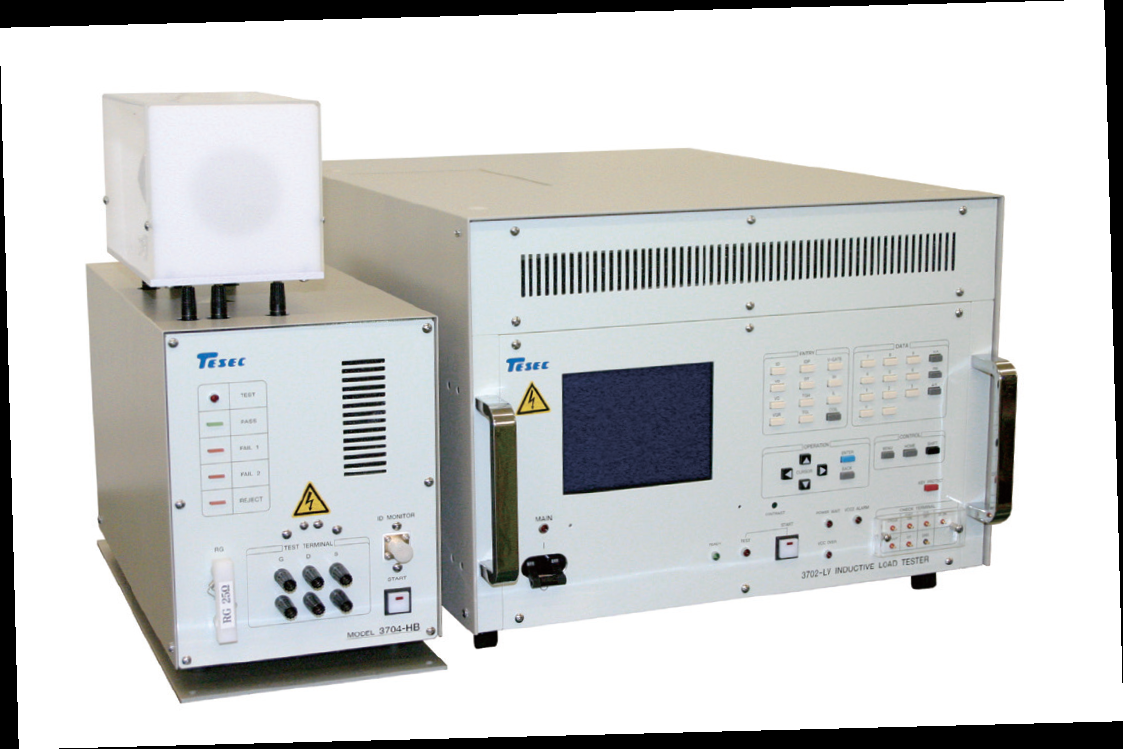

9302-LV/L
The inductive load tester observes the shape of waves in the inductive load of MOSFET at the turnoff, and judges whether to pass outside the Safety Operation Area (SOA) provided for by V-GATE, IH, and IL. In addition, the VDS value in the current value provided for by IH can be measured.
| Specifications |
| Model |
9302-LV |
| Standard device |
MOSFET, Bipolar transistor |
| Collector/Drain current IC/ID |
1.0～100.0A |
| Peak drain current IDP |
- |
| Collector/Drain voltage VC/VD |
1.0～100.0V |
| Base current IB (Reverse base current IBR) |
0.01～20.00A(0.01～20.00A) |
| Gate voltage VG (Reverse gate voltage VGR) |
1.0～30.0V(0.0～30.0V) |
| Clamp voltage |
30～2000V |
| Voltage limit(V-GATE) |
30～2000V |
| IH limit |
01～100.0A |
| IL limit |
01～100.0A |
| Gate ON time(TG) |
- |
| Post-short detecting time(DT) |
- |
| Gate resistance |
10Ω(Fixed, Internal) |
FEATURES
Peak current (IDP) at Avalanche Test can be measured.
Gate ON Time ca be measured.(3702-LV)
Possible to measure to 2 times or less on a different condition.(Drain Voltage cannot be charged.)
Repeat test can be performed up to 250 times.
Maximum 5-binning
LV CONTROL optional software is recommended.
Test program can also be created by using external personal computer.
