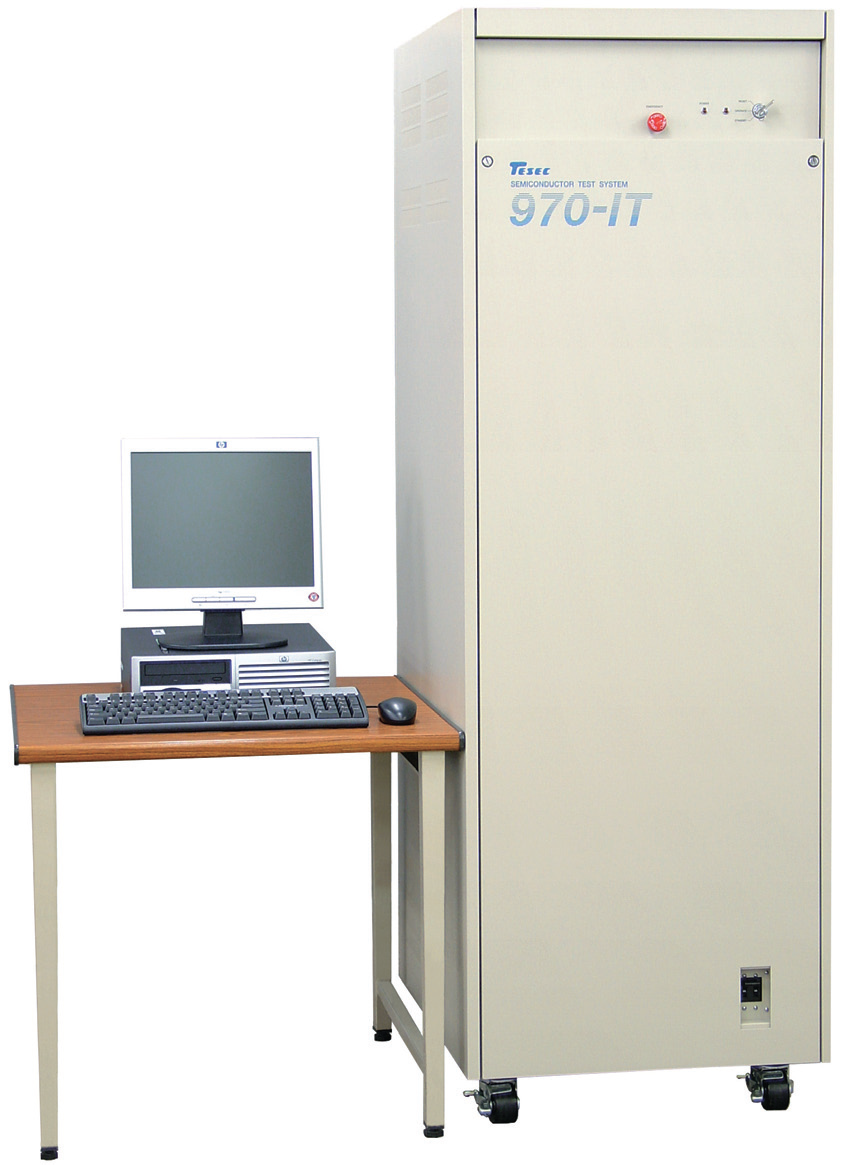

970-IT
The 970-IT test system performs testing of intelligent power devices and modules up to 32 pins. Each tester includes 2 test stations. The use of pin matrix and source units make the tester fully programmable according to user requirement.
| Specifications |
|
Standard device
|
IPM, IPD, Transistor, Diode, FET, Dual-Gate FET, IGBT, Voltage Regulator, Opto device, Thyristor, Array device |
|
Test station
|
2 |
|
Voltage/Current
|
±60V/50A, ±1.6kV/500mA |
|
Pinout
|
32 pins |
|
Source lines
|
8 |
|
Maximum bias conditions
|
7-bias |
|
Architecture
|
per matrix V-I source |
| Data display
|
4-digit |
|
Test plan
|
999 |
|
Sort plan
|
250 |
|
Parallel sort output
|
24 |
|
Relay time
|
5ms |
|
HOST CPU
|
PC |
|
Control CPU
|
68000 |
|
Operating system
|
Microsoft(R) Windows(R) XP |
|
Host PC interface
|
GP-18 |
|
Electrical power
|
AC100 1.5VA |
|
Dimension (WxDxH)
|
Mainframe: 600x700x1768mm
Test Station: 365x630x600mm
|
|
Weight
|
Mainframe: 200kg
Test Station: 50kg
|
|
Previous model
|
881-TT0 |
|
Options
|
Software: Host link,Data analysis, Text editor |
FEATURES
measurement of power module/devices upto 32 pins
maximum 6 bias settings
source unit with 8 lines
fully programmable test circuit
two-point judgment of test results
software based on Windows
