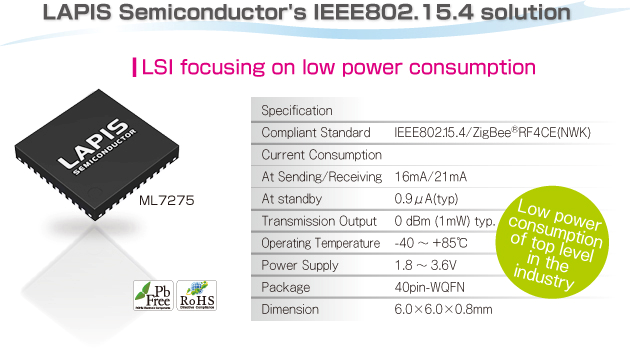

LAPIS Semiconductor's wireless communication module is compliant to IEEE802.15.4 standard. It makes possible to start immediately development and evaluation. LAPIS Semiconductor has the line-up of simple use modules and low power consumption LSI.

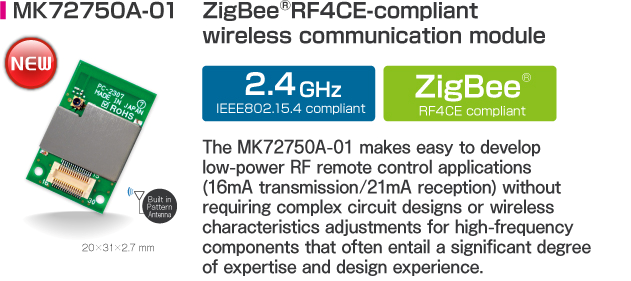

for
MAC

for
NWK

Antenna

Sight
Distance*

Data
Rate

HOST
I/F

Command
I/F

Power
Supply
Voltage

Operating
Temperature

Current
Consumption
(at operating)

Power
Saving
Mode

Status

Yes

Yes

ZigBee®
RF4CE

Pattern Antenna

30
m

250
kbps

UART
(～115.2
kbps)

Synchronous
Serial

RF4CE
NWK

1.8～
3.6V

-40～
+85℃

16
mA
(Transmission)
/
21
mA
(Reception)

1.0
µA

Samples available

*Communication distance differs according to built-in equipment and surrounding ambience.

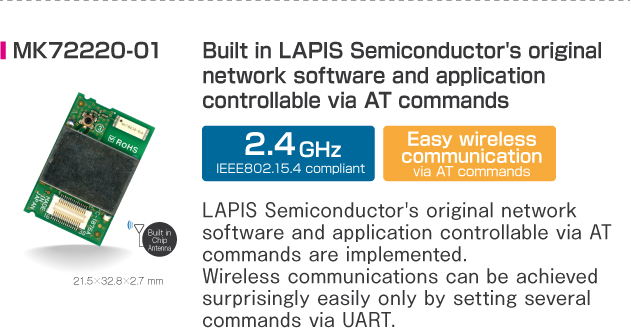

for
MAC

for
NWK

Antenna

Sight
Distance*

Data
Rate

HOST
I/F

Command
I/F

Power
Supply
Voltage

Operating
Temperature

Current
Consumption
(at operating)

Power
Saving
Mode

Status

Yes

Yes

Yes
(bulit-in)

Chip Antenna

70
m

38.4
kbps

UART

Original
AT
Commands

2.7～
3.6V

-20～
+60°C

30mA

20µA

Mass Production

*Communication distance differs according to built-in equipment and surrounding ambience.

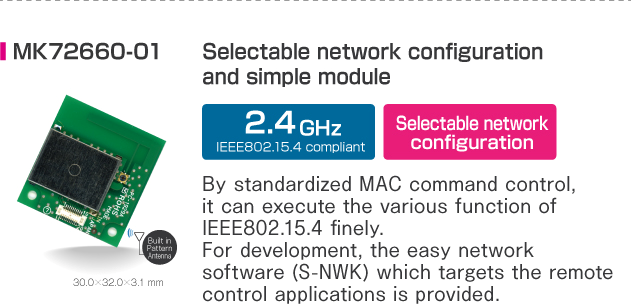

for
MAC

for
NWK

Antenna

Sight
Distance*

Data
Rate

HOST
I/F

Command
I/F

Power
Supply
Voltage

Operating
Temperature

Current
Consumption
(at operating)

Power
Saving
Mode

Status

Yes

Yes

S-NWK
(sample software)

Pattern
Antenna

30
m

250
kbps

Synchronous
Serial

IEEE802.15.4
MAC
commands

2.1～
3.6V

-20～
+70°C

27mA

2.7µA

Mass Production

*Communication distance differs according to built-in equipment and surrounding ambience.

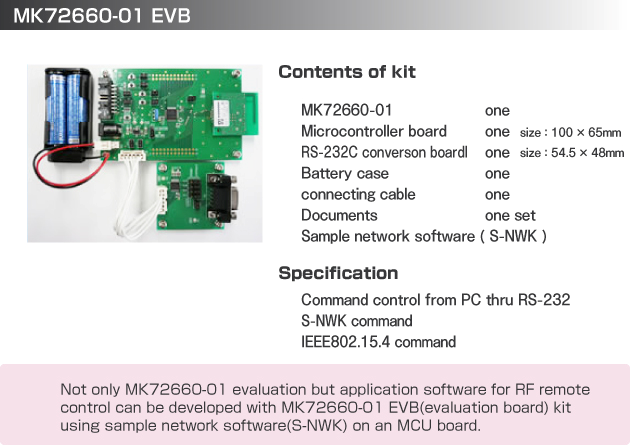

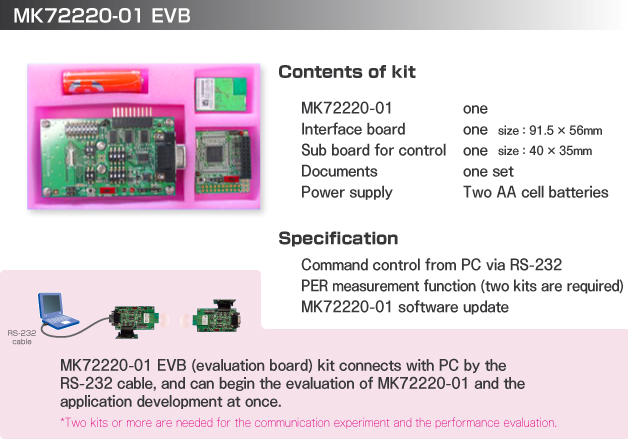

LAPIS Semiconductor's wireless communication module is provided with a starter kit in order to start the evaluatoin and inspection of module and the application development immediately.
